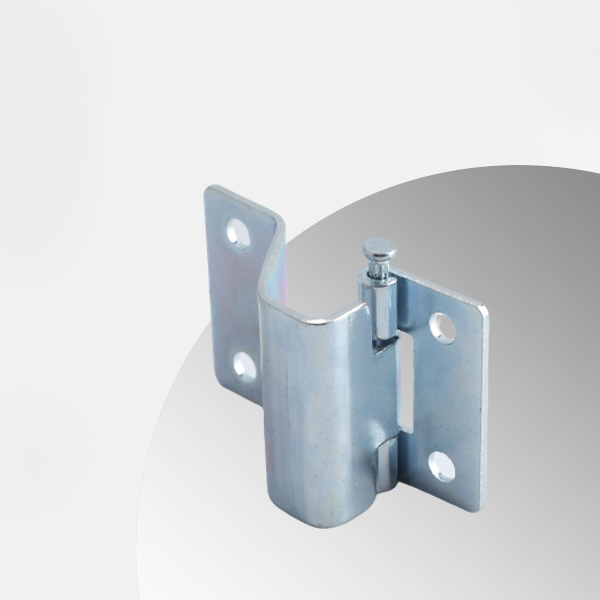

This article provides a complete step-by-step guide forheavy-duty hinge installation, from tool preparation to final adjustment, helping you complete the installation correctly.
Before installing heavy-duty hinges, you need to prepare a power drill, drill bits, screwdrivers, a tape measure, a level, a marker pen, and thread-locking compound. For welded heavy-duty hinges, you will also need a welding machine and a face shield. At the same time, confirm that the heavy-duty hinge specifications match the door panel and check that all fasteners are complete. High-quality heavy-duty hinge manufacturers include installation instructions and positioning templates with their products, which can greatly reduce installation errors. Before installation, we also recommend wearing protective gloves to prevent injuries from sharp metal edges.
Place the cabinet door panel flat on a workbench and use a tape measure to measure the distance from the door panel edge to the heavy-duty hinge mounting holes. Typically, the distance from the leaf edge of the heavy-duty hinge to the door panel edge should be 20 to 30 millimeters. The spacing between the upper and lower heavy-duty hinges should be set at one-third to two-thirds of the door panel height. After using a level to confirm the door panel is horizontal, mark all drilling positions with a marker pen. Symmetrically installed heavy-duty hinges must have identical hole positions on both sides; otherwise, the door panel will tilt. Heavy-duty hinge manufacturers typically provide standard mounting hole spacing drawings.
Based on the fastener diameter of the heavy-duty hinge, select a drill bit slightly smaller than the screw diameter for pre-drilling. For example, when using a 5-millimeter diameter screw, choose a 4.5-millimeter drill bit. The drilling depth should be 3 to 5 millimeters longer than the screw length to ensure the screw can be fully seated. For metal door panels, remove burrs with a file after drilling. When installing heavy-duty hinges on stainless steel door panels, use a cobalt drill bit with cutting fluid to prevent the drill bit from overheating and being damaged. After all holes are drilled, blow out metal debris with compressed air.

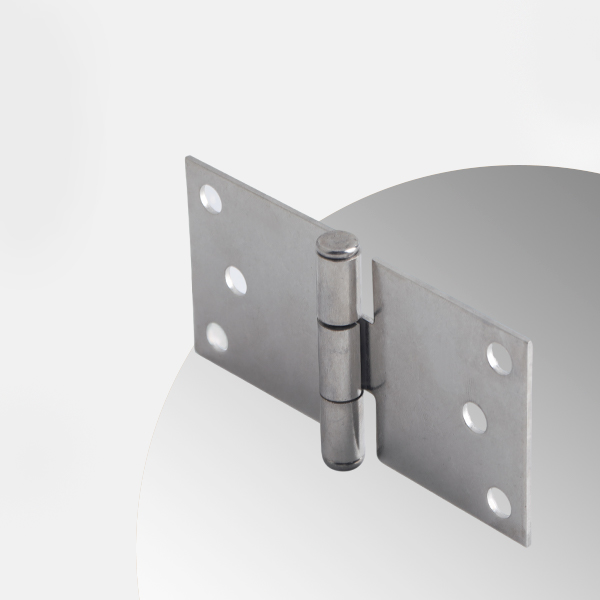

Align the leaf of the heavy-duty hinge with the drilled holes and insert the fasteners one by one. First, thread the screws in two to three turns by hand to confirm the threads are aligned, then use a power tool to tighten them. Do not apply too much torque to prevent stripping the threads or damaging the leaf of the heavy-duty hinge. We recommend using a diagonal cross-tightening sequence: pre-tighten the screws at the four corners first, then tighten all fasteners to their final torque. For bolted heavy-duty hinges, apply medium-strength thread-locking compound to the threads to prevent loosening from long-term vibration. Cabinet hinges and heavy-duty industrial hinges generally use the same tightening method. After tightening, check whether the leaf of the heavy-duty hinge is firmly flush against the door panel.
Lift the door panel with heavy-duty hinges already attached to the cabinet and align it with the mounting holes on the cabinet. For welded heavy-duty hinges, first tack weld them in place, confirm that the door opens and closes smoothly, and then complete the full weld. For bolted heavy-duty hinges, insert the screws through the cabinet holes and tighten the nuts securely. During installation, keep the gap between the door panel and cabinet uniform, with the difference between the top and bottom gaps not exceeding 2 millimeters. For heavy-duty hinge installation, we recommend having two people work together: one person holds the door panel while the other tightens the screws, preventing the door panel from falling and causing injury.
After assembly is complete, slowly open and close the door panel three to five times to verify that the heavy-duty hinge rotates smoothly. If the door panel sags or binds, loosen the fixing screws of the heavy-duty hinge and add 0.5 to 1.0 millimeter adjustment shims between the leaf and the door panel. For adjustable heavy-duty hinges, use the eccentric adjustment screws to fine-tune the front-to-back and left-to-right position of the door panel. During adjustment, measure the gap between the door panel and the cabinet at all four corners to ensure the sealing gasket is evenly compressed. Concealed hinges require special attention to the precise centering of the pivot shaft position during adjustment. After adjustment is complete, retighten all fasteners and check whether the pivot pin of the heavy-duty hinge has any play.
After heavy-duty hinge installation is complete, perform acceptance testing according to the following standards: When the door panel is in the closed position, the gap difference on all four sides should not exceed 1 millimeter. When the door panel is opened to 90 degrees, it should remain stable after being released and not swing back automatically. The heavy-duty hinge should produce no unusual noise or binding during opening and closing. Use a torque wrench to spot-check three to five screws; the torque value should be between 90 percent and 110 percent of the manufacturer's recommended range. For welded heavy-duty hinges, the weld seam should be full and free of cracks, and dye penetrant inspection may be performed if necessary. Only heavy-duty hinge installations that meet these standards are considered qualified.
During use, heavy-duty hinges should be inspected every three months. Inspections include checking whether fasteners are loose, whether the pivot shaft is adequately lubricated, and whether the leaf is deformed. If screws are found loose, immediately retighten them to the standard value using a torque wrench. For outdoor equipment, we recommend applying high-temperature grease to the pivot area of the heavy-duty hinge every six months. If the bushing wear gap of the heavy-duty hinge exceeds 0.5 millimeters, replace it with a new part promptly. Choosing products from reputable heavy-duty hinge manufacturers ensures better parts availability and more complete installation guidance. Proper maintenance can more than double the service life of heavy-duty hinges.
Installing heavy-duty hinges requires strictly following a step-by-step process, including six key stages: tool preparation, position marking, pre-drilling, fastener tightening, door assembly, and opening and closing adjustment. Before installation, confirm that the heavy-duty hinge specifications match the door panel. During installation, pay attention to drilling accuracy and the diagonal tightening sequence. After installation, perform gap measurements and opening-and-closing performance checks. Welded heavy-duty hinges require ensuring weld seam quality. Bolted heavy-duty hinges should have thread-locking compound applied to prevent loosening. Installation drawings and positioning templates provided by heavy-duty hinge manufacturers can significantly improve installation accuracy. During routine maintenance, check fastener torque and bushing wear every quarter, and reapply grease as needed. Properly installed heavy-duty hinges can operate safely for more than ten years, while incorrect installation methods can greatly shorten service life or even cause safety accidents. By following this guide, you can achieve professional heavy-duty hinge installation.
