This article systematically classifies heavy-duty hinges by installation method, material, function, and structural design to help you make accurate selections.

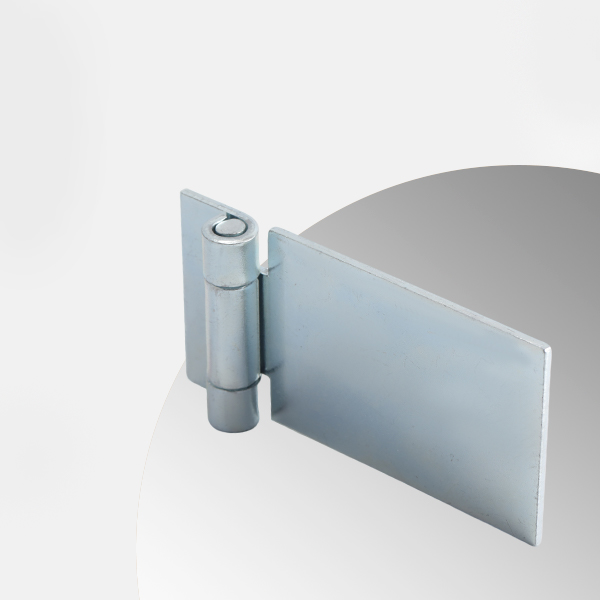

Welded heavy-duty hinges are fixed directly to the door frame by electric welding, with no removable external parts, offering extremely strong anti-theft performance.
This type is suitable for outdoor cabinets, charging stations, and telecom base station equipment with high security requirements.
During installation, position the heavy-duty hinge and tack weld it in place. After confirming smooth door panel opening and closing, complete the full weld.
The weld seams of welded heavy-duty hinges must be full and uniform, without porosity or cracks.
Once installed, this type of heavy-duty hinge cannot have its position adjusted. Therefore, precise measurement of the gap between the door panel and cabinet is required before welding, with the difference between the top and bottom gaps controlled within 2 millimeters.
Cabinet hinges widely adopt welded designs to improve protection ratings.

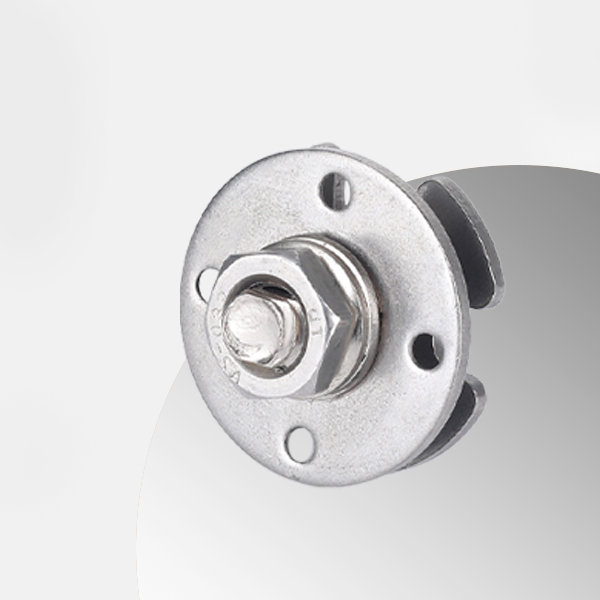

Bolted heavy-duty hinges fasten leaves to the door panel and cabinet using screws or bolts, making disassembly and replacement easy.
These bolted models suit vibrating environments such as areas near generators or air compressors, because bolts can be retightened when they loosen.
During installation, apply medium-strength thread-locking compound to the threads to prevent loosening from long-term vibration.
Bolted heavy-duty hinges have lower maintenance costs and can be retightened quarterly with a torque wrench.
For cabinets requiring frequent internal equipment access, this design allows quick door panel removal, improving work efficiency.
When purchasing replacement parts, confirm with the heavy-duty hinge manufacturer whether the hole spacing matches the original product.
Removable variants feature a detachable pivot shaft design, allowing the door panel to be lifted upward and removed directly.
This type of heavy-duty hinge suits equipment requiring frequent internal component inspection, such as power distribution cabinets and control boxes.
The upper leaf of a removable heavy-duty hinge has an open slot, while the lower leaf serves as a solid load-bearing seat. During installation, lift the door panel, align it with the slot, and lower it into place for locking.
For removal, reverse the operation to take off the door panel without removing any screws.
The load capacity of these hinges is typically 10 to 15 percent lower than welded types, so allow extra margin during selection.
These removable hinges are widely used in food processing equipment for easy regular cleaning.
Carbon steel is the most basic material for these components. After hot-dip galvanizing or electrophoretic coating, its rust resistance is significantly improved.
This type of heavy-duty hinge has lower cost and suits ordinary industrial cabinets in dry indoor environments.
Carbon steel options offer high strength, with single-hinge load capacity reaching 200 to 300 kilograms.
However, carbon steel heavy-duty hinges rust easily in humid environments, and corrosion accelerates once the coating is damaged.
When choosing carbon steel models, request salt spray test reports from suppliers. Indoor use should require no less than 72 hours, and outdoor use no less than 300 hours.
During daily maintenance, regularly check whether the coating on carbon steel heavy-duty hinges remains intact.
Stainless steel heavy-duty hinges are cast or stamped from 304 or 316 stainless steel, offering excellent corrosion resistance.
These stainless steel hinges suit highly corrosive environments such as coastal areas, chemical plants, and wastewater treatment facilities.
304 stainless steel heavy-duty hinges can achieve over 500 hours in salt spray testing, while 316 stainless steel heavy-duty hinges can exceed 1,000 hours.
Stainless steel heavy-duty hinges have slightly lower hardness than carbon steel but offer better toughness and impact resistance.
In appearance, stainless steel heavy-duty hinges have a silver-white metallic luster and require no additional coating treatment.
Although stainless steel heavy-duty hinges cost more, they offer lower total lifecycle costs in harsh environments.
Forged steel heavy-duty hinges are manufactured through high-temperature forging, resulting in dense internal grain structure and strength far exceeding cast parts.
This type of heavy-duty hinge suits extreme heavy-load scenarios such as mining equipment, port machinery, and large press protective covers.
Forged steel heavy-duty hinges typically have leaf thickness exceeding 8 millimeters and pivot shaft diameters up to 25 millimeters.
Single-hinge load capacity for forged steel heavy-duty hinges can exceed 500 kilograms, with some special products reaching 1,000 kilograms.
After quenching and tempering, forged steel heavy-duty hinges achieve hardness of HRC 32 to 36, with excellent wear resistance.
This type of heavy-duty hinge costs three to five times more than standard carbon steel, but its service life can exceed 15 years.
Standard models provide only basic rotational opening and closing functions, with simple structure and lower cost, making them the most common type on the market.
This type of heavy-duty hinge suits standard opening and closing scenarios such as standard power distribution cabinets and server racks.
Standard models lack additional functions like damping or positioning, so the operating feel depends entirely on lubrication condition.
The leaves of this type of heavy-duty hinge are typically flat, 4 to 6 millimeters thick, with pivot shaft diameters of 10 to 16 millimeters.
Selection of standard heavy-duty hinges is primarily based on load capacity and installation method, with clear functional requirements.
For budget-constrained projects, standard hinges offer the best cost-performance ratio.
Damping heavy-duty hinges have built-in hydraulic cushioning modules that automatically slow down the door panel during the final 15 to 20 degrees of closing.
This type of heavy-duty hinge suits cabinets housing precision instruments or fragile components, preventing impact vibration from door slamming.
The cushioning speed of damping heavy-duty hinges can be adjusted via an adjustment screw. Turning clockwise speeds up locking, while turning counterclockwise slows it down.
Damping heavy-duty hinges cost about 30 percent more than standard types, but they effectively protect internal equipment and extend seal life.
Damping heavy-duty hinges are widely used in hospital imaging equipment, laboratory test cabinets, and optical instrument enclosures.
High-end series of heavy-duty industrial hinges also offer damping as an option.
Positioning heavy-duty hinges feature a ratchet locking mechanism at specific angles, allowing the door panel to lock firmly at 90-degree or 180-degree positions without wobbling.
This type of heavy-duty hinge suits scenarios where maintenance personnel need both hands for instrument operation, preventing the door panel from accidentally swinging back and causing injury.
The locking mechanism of positioning heavy-duty hinges has passed over 10,000 durability tests, ensuring long-term reliability.
To unlock, lift the door panel slightly or press the release button, with slight design variations among different brands.
Positioning heavy-duty hinges are required by regulations for power maintenance cabinets, marine equipment, and elevated work platforms.
Surface-mounted heavy-duty hinges have leaves that fully align with the door panel and cabinet surface without embedding into any grooves.
This type of heavy-duty hinge offers the simplest installation. Simply mark hole positions on the flat surface, drill, and tighten screws.
Surface-mounted heavy-duty hinges suit thinner door panels without requiring additional countersinking or grooving.
This type of heavy-duty hinge has a larger exposed area, with the complete leaf outline visible from the exterior.
The load capacity of surface-mounted heavy-duty hinges depends on leaf area and thickness; larger area provides higher load capacity.
Standard power distribution cabinets and ordinary industrial cabinets widely use surface-mounted heavy-duty hinges.
Embedded heavy-duty hinges have leaves partially or fully inserted into pre-cut grooves in the cabinet and door panel, resulting in a relatively flush surface after installation.
This type of heavy-duty hinge offers a cleaner appearance, with only the pivot shaft position visible when the door panel is closed.
Embedded heavy-duty hinges require higher installation precision, as groove depth and width must precisely match leaf dimensions.
This type of heavy-duty hinge typically requires specialized tools and templates for installation.
Embedded heavy-duty hinges suit equipment with high appearance requirements, such as medical instruments and communication cabinets.
Concealed hinges represent a typical example of embedded heavy-duty hinges, with the pivot shaft completely hidden inside the door frame.
Adjustable heavy-duty hinges feature eccentric adjustment screws for fine-tuning the position of the door panel in three dimensions.
This type of heavy-duty hinge suits scenarios with large sheet metal tolerances or deformed old cabinets, compensating for installation errors through adjustment.
Adjustable heavy-duty hinges typically offer adjustment ranges of 3 millimeters front-to-back, 2 millimeters left-to-right, and 2 millimeters up-and-down.
This adjustable design reduces installation and adjustment time by over 50 percent compared to standard types, significantly reducing rework hours.
Adjustable heavy-duty hinges cost 20 to 40 percent more than standard types but offer excellent value in precision assembly scenarios.
Before purchase, confirm with the heavy-duty hinge manufacturer whether the adjustment range meets actual tolerance requirements.
Heavy-duty hinges are mainly divided into four major classification systems.
By installation method, they include welded type, bolted type, and removable type. Welded type offers strong anti-theft performance for outdoor use. Bolted type facilitates maintenance for vibrating environments. Removable type allows easy disassembly for frequent inspection.
By material, they include carbon steel, stainless steel, and forged steel. Carbon steel is economical for indoor use. Stainless steel resists corrosion for coastal and chemical plants. Forged steel provides ultimate load capacity for mines and ports.
By function, they include standard type, damping type, and positioning type. Standard type meets basic opening and closing needs. Damping type protects precision instruments. Positioning type ensures safety for elevated work.
By structure, they include surface-mounted type, embedded type (concealed type), and adjustable type. Surface-mounted type offers simple installation. Embedded type provides a clean appearance. Adjustable type compensates for tolerances.
Different cabinet hinges are selected for different scenarios. Heavy-duty industrial hinges emphasize combinations of forged steel and damping functions.
Communicating thoroughly with a reliable heavy-duty hinge manufacturer about the operating environment and frequency is the core prerequisite for choosing the right type.
Mastering these four classification dimensions enables precise identification of the most suitable heavy-duty hinge based on actual needs.
