Correctly calculating the load capacity for heavy-duty hingesis the core of proper selection. This article provides calculation formulas and safety factors to help you precisely match your application requirements.
The load rating for industrial hinges comes in two forms: static load and dynamic load. Static load refers to the maximum vertical pressure a door panel can withstand when stationary. Dynamic load refers to the impact load the hinge endures during the opening and closing cycle. When selecting heavy-duty hinges, dynamic load is typically more important than static load.
Static load data is measured in laboratory conditions by manufacturers. Dynamic load, by contrast, simulates the reciprocating forces and vibration of actual use. Premium products typically have a dynamic load rating equivalent to 70 to 80 percent of their static rating. When calculating, always prioritize dynamic load data.
The same product also performs differently at varying installation angles. Load capacity is highest when the door panel is opened to 90 degrees, and slightly lower at 180 degrees. The load calculation for cabinet hinges follows exactly the same principles.
The rated load of a single heavy-duty hinge is the manufacturer's declared value. When multiple hinges are installed, total effective load capacity is not equal to the simple sum of individual ratings. Typically, effective total capacity is calculated as 80 percent of the sum of individual ratings.
With two hinges installed, each carries approximately half the door panel weight. With three hinges, the top and bottom hinges carry the primary load, while the middle hinge provides stabilization. Greater installation spacing results in more even load distribution.
After calculating the total door weight, divide by the number of hinges and multiply by an unevenness factor of 1.2. The resulting value should be less than the single-hinge rated load. For example, a 100-kilogram door with two hinges requires each hinge to carry at least 60 kilograms.
The safety factor is a critical parameter that cannot be overlooked in load calculation. For standard industrial scenarios, we recommend a safety factor of 2 to 3 times the calculated load. A 50-kilogram door panel requires a hinge rated for 100 to 150 kilograms.
Outdoor equipment, due to wind loads and temperature fluctuations, should use a safety factor of 2.5 to 3 times. For high-frequency opening scenarios, where wear accelerates, a safety factor of 3 times or more is advised. Equipment subject to high dynamic impact loads requires a safety factor of 4 times.
An insufficient safety factor leads to early deformation and failure. An excessive safety factor wastes budget. The right balance is key to reliability and cost-effectiveness. When consulting with a heavy-duty hinges factory, provide your operating conditions for accurate recommendations.
The most accurate method is using an electronic crane scale or floor scale for direct weighing. Remove the door panel and suspend it vertically, recording the reading as the baseline for calculation. Include all door-mounted components, such as handles, glass panels, and reinforcing ribs.
If removal is not possible, use a hydraulic jack with a pressure sensor to estimate weight. Place the jack under the door panel's bottom edge and lift slowly, recording the peak pressure reading. This method achieves accuracy above 95 percent.
After weighing, record the data along with door panel material and thickness. Take at least three measurements and average them to eliminate outlier errors. Accurate door panel weight is the first and most critical step in load calculation.
Beyond the door panel's own weight, additional loads must be factored in. These include instruments, heat sinks, cables, brackets, and other mounted components. These accessories add to the actual load.
Environmental loads are equally important. Outdoor door panels must account for wind pressure and snow accumulation. Automated equipment doors must consider push-pull forces from cylinders or motors. These dynamic loads should be added to the static weight calculation.
Aggregate all additional loads and add them to the door panel's own weight to determine the total load value. Total load is the final baseline for selection. Missing any additional load can lead to incorrect selection.
Vertical installation provides maximum load capacity. Horizontal installation reduces capacity by 20 to 30 percent. Most industrial cabinets use vertical installation. Horizontal installation requires a product with a higher capacity rating.

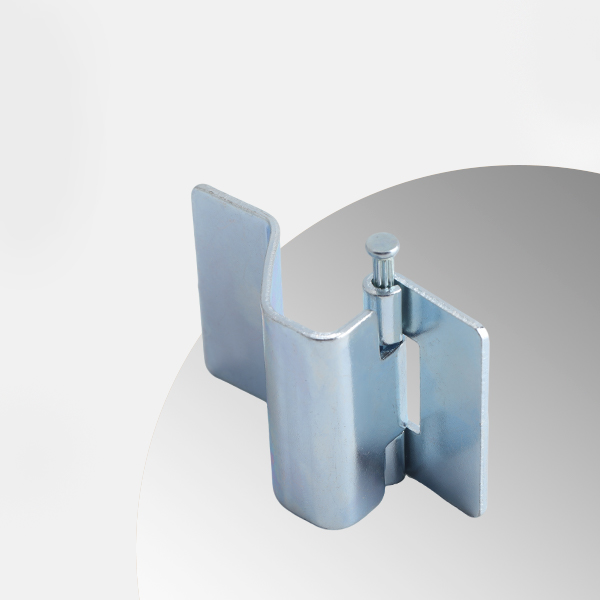

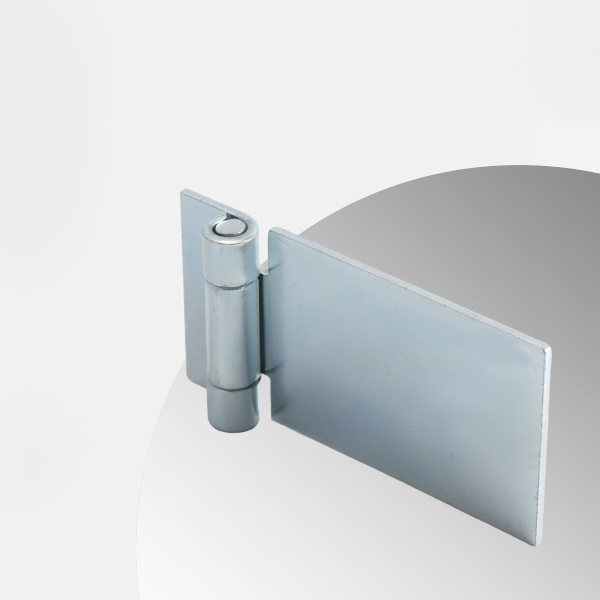

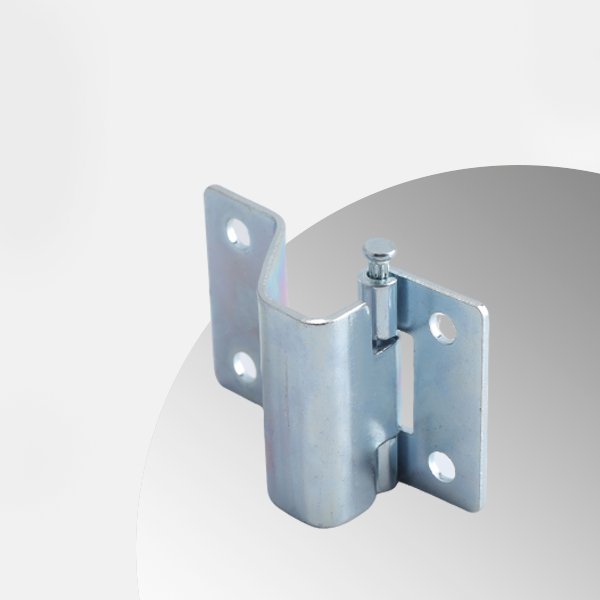

Welded installation typically provides 10 percent higher load capacity than bolted installation. Using Grade 8.8 high-strength bolts can increase actual load capacity by approximately 15 percent. Removable (plug-in) types offer 10 to 15 percent lower capacity than welded types.
Before installation, confirm the specific installation derating factor with the heavy-duty hinges factory. Obtaining these parameters accurately is essential for proper load calculation.
| Installation Method / Hinge Type | Load Capacity Efficiency | Suggested Derating Factor |
| Vertical Installation | 100% | 1.00 |
| Horizontal Installation | 70% - 80% | 0.75 |
| Welded Installation | 110% (Enhanced) | 1.10 |
| Bolted Installation (Grade 8.8) | 90% | 0.90 |
| Removable / Plug-in Type | 85% | 0.85 |
The core formula for single-hinge load calculation is: Single-Hinge Load = Total Load ÷ Number of Hinges × Unevenness Factor. The unevenness factor typically ranges from 1.2 to 1.5. The calculated result should be below the single-hinge rated capacity.
Example: Door panel total load = 100 kg, 2 hinges installed.
Single-hinge calculated load = 100 × 1.2 ÷ 2 = 60 kg
Multiply by safety factor of 2.5 → 60 × 2.5 = 150 kg
Therefore, select a hinge with a minimum rated load of 150 kg.
Simultaneously verify dynamic load data, ensuring it is not less than 70 percent of the calculated value. Consult the product catalog to select a suitable model. After calculation, confirm with the factory whether the selected model matches your requirements.
With three or more hinges installed, load distribution becomes more complex. The middle hinge primarily provides stabilization and torsion resistance, handling approximately 15 percent of the load. The top and bottom hinges carry the remaining 85 percent.
For multi-hinge calculations, first deduct the middle hinge's load proportion. Then distribute the remaining load equally among the top and bottom hinges, and apply the unevenness factor. For four hinges, distribute equally between the top pair and bottom pair.
Installation spacing should be set at one-third to two-thirds of the door panel height. Insufficient spacing concentrates load in the center. Excessive spacing causes uneven distribution between top and bottom. Optimized spacing maximizes load efficiency.
Welded hinges can be rated at 100 percent of the nominal value. For bolted hinges, using 90 percent of the nominal value is safer. Standard bolted hinges are affected by hole position accuracy, which reduces actual load capacity.
Removable (plug-in) hinges should be rated at 85 percent of the nominal value. For horizontal installation, multiply by an additional 0.75 factor. Multiple derating factors should be applied cumulatively to ensure sufficient margins.
Confirm the derating factors for different installation methods with the heavy-duty hinges factory. Use accurate data in calculations to determine the final selection criteria.
After completing the selection, we recommend sample testing for verification. Install the heavy-duty hinge on a test door panel, apply load incrementally to 1.5 times the calculated value. Hold for one minute and observe whether deformation exceeds 0.5 millimeters.
Durability testing should simulate three months of actual usage based on expected opening frequency. After testing, measure pivot shaft wear and gap changes. Products passing these tests are approved for full-scale deployment.
Test reports should include conditions such as temperature, humidity, and loading rate. Environmental factors affect actual load performance. Retain test data for quality traceability purposes.
After installation, open the door panel to 90 degrees and suspend weights equal to 80 percent of the calculated load from the door edge. Observe whether visible deformation occurs at the leaf-to-cabinet connection. Use a feeler gauge to measure the four-side gap. A gap difference exceeding 2 millimeters indicates insufficient load capacity.
If binding or unusual noise occurs during opening/closing testing, stop immediately. Binding may indicate pivot shaft deformation. Unusual noise may indicate bushing wear. On-site verification is the final checkpoint for load calculation.
If issues arise, adjust or recalculate accordingly. Only after successful on-site verification should the equipment be placed into formal service.
After deployment, regularly monitor door panel sag and opening/closing feel. Measure the four-side gap with a tape measure quarterly and record any trend changes. Address anomalies promptly.
Establish a long-term load data archive. Include door panel weight, hinge model, installation date, and each monitoring record. This provides a reference for future selection and maintenance decisions.
Continuous monitoring enables early detection of problems, preventing sudden failures. Correct load calculation combined with ongoing monitoring allows heavy-duty industrial hingesto operate safely for over ten years.
Calculating the load capacity for heavy-duty hinges requires following five core steps.
First, distinguish between static load and dynamic load, prioritizing dynamic data. For multiple hinges, calculate total capacity as 80 percent of the sum of individual ratings.
Second, precisely measure the door panel's own weight and add all additional loads, including instruments, cables, and environmental factors.
Third, apply derating factors based on installation method. Vertical installation at 100 percent, horizontal at 75 percent.
Fourth, calculate the actual load per hinge using this formula: (Total Load × Unevenness Factor) ÷ Number of Hinges. Then multiply by a safety factor of 2 to 3 times.
Finally, confirm your selection through laboratory testing and on-site verification. After installation, regularly monitor door panel condition.
The load calculation for cabinet hinges uses the exact same method described here.
Maintain communication with a professional heavy-duty hinges factory. Provide detailed operating parameters for more accurate selection recommendations. Correct load calculation for heavy-duty hinges ensures equipment operates safely for more than ten years.
